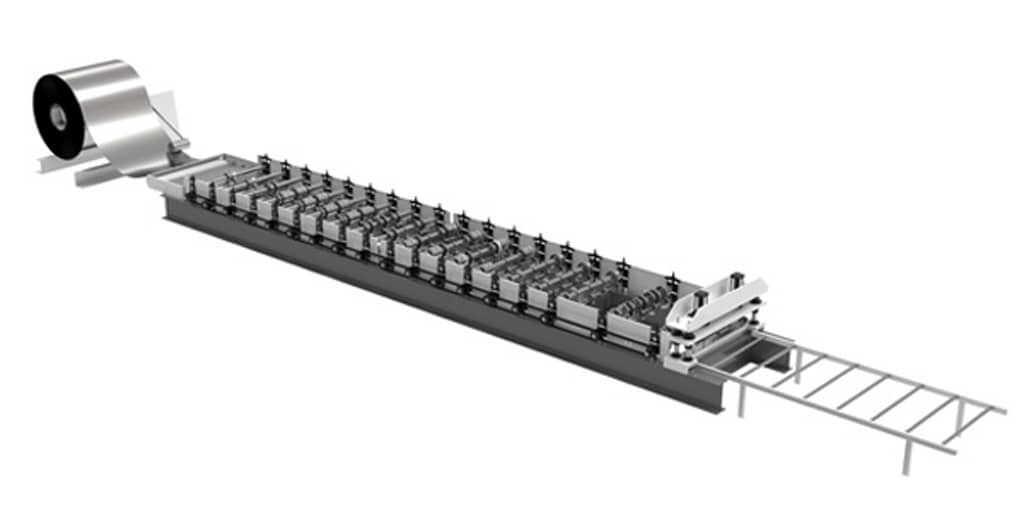

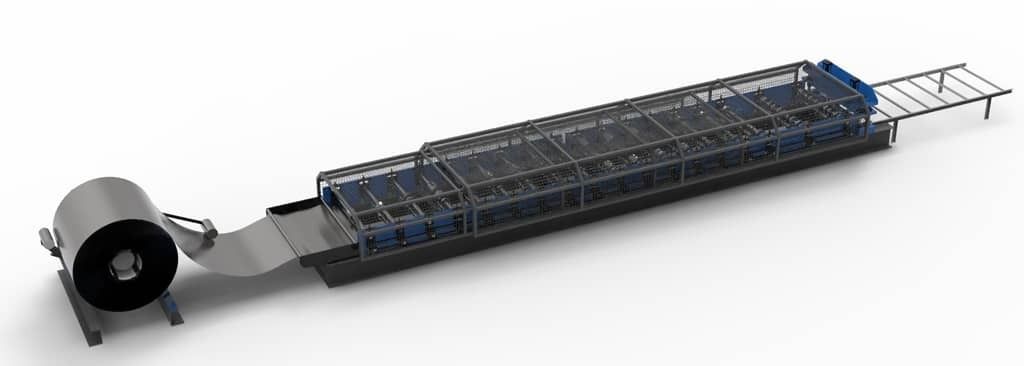

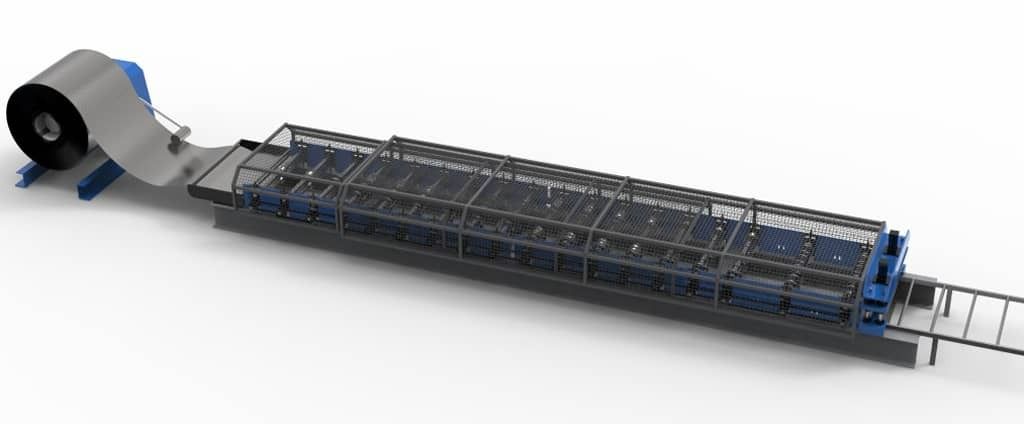

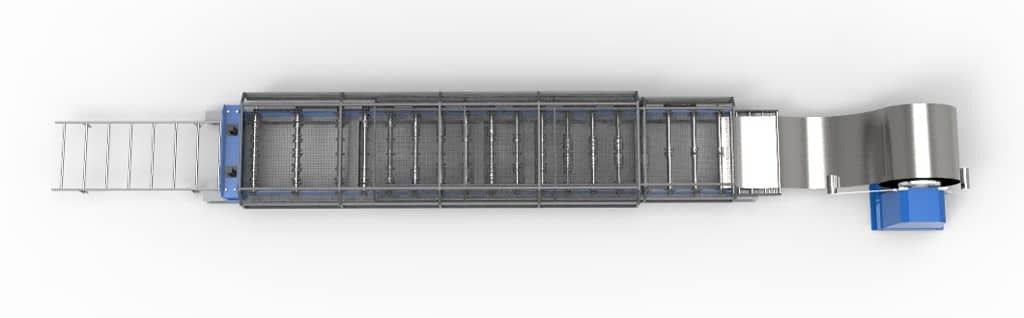

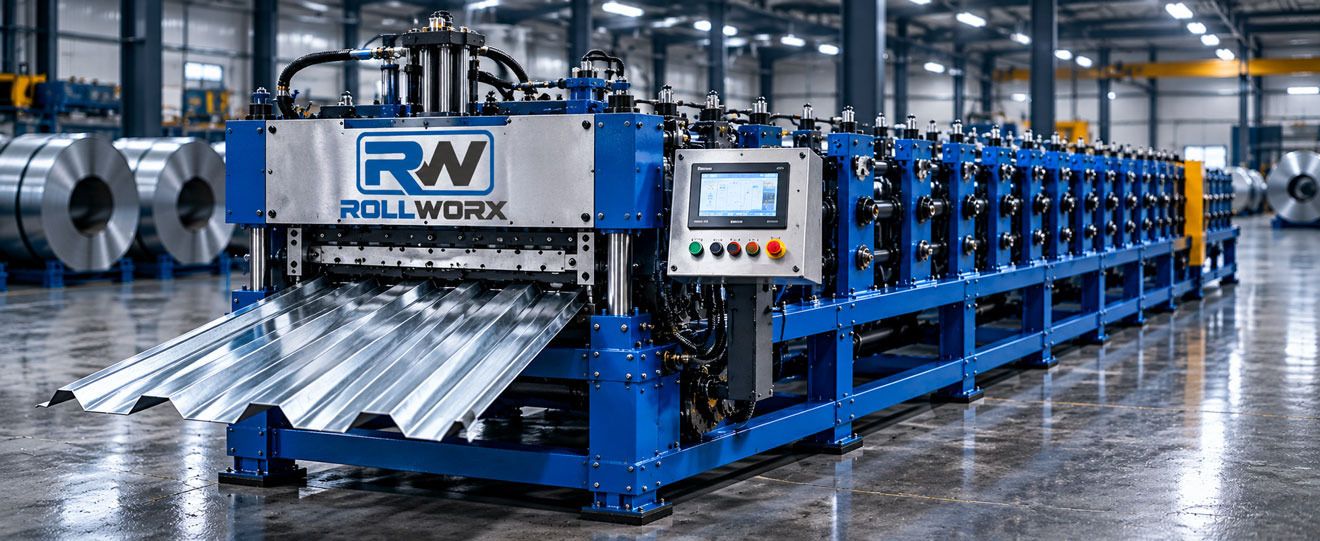

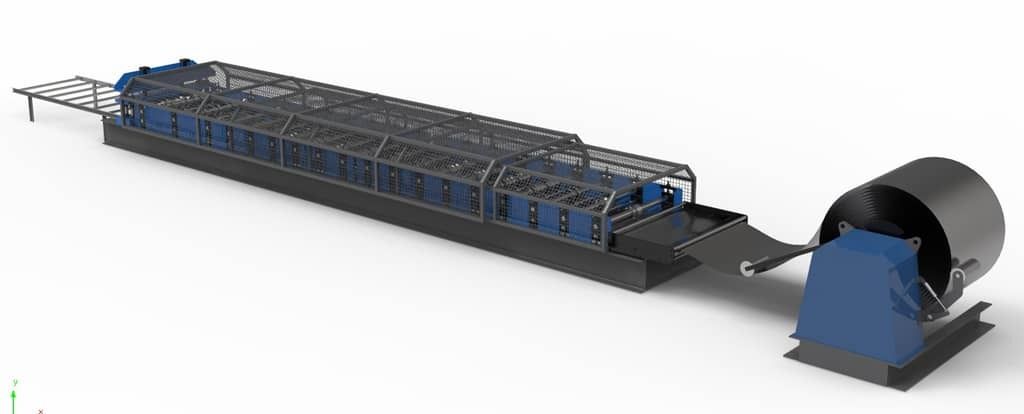

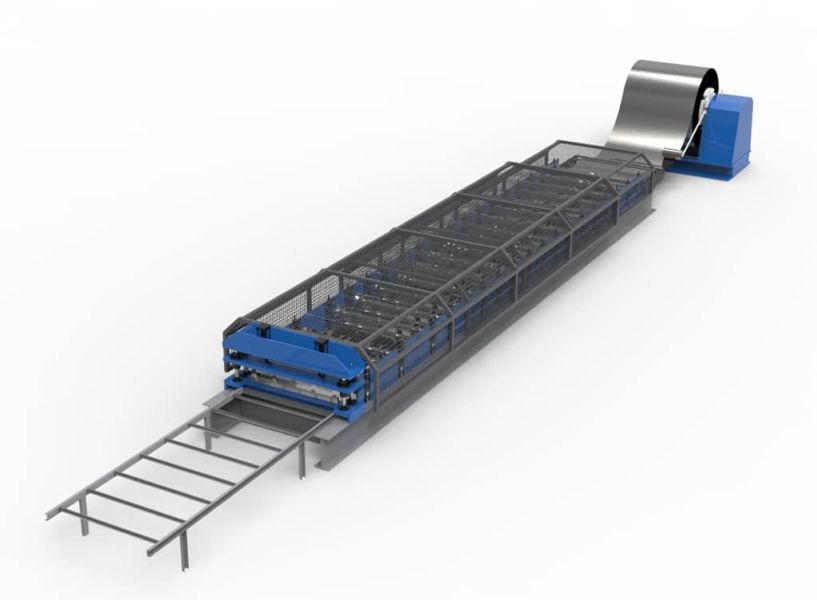

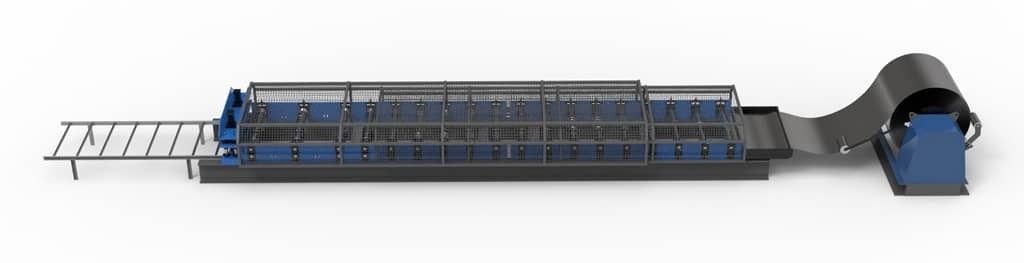

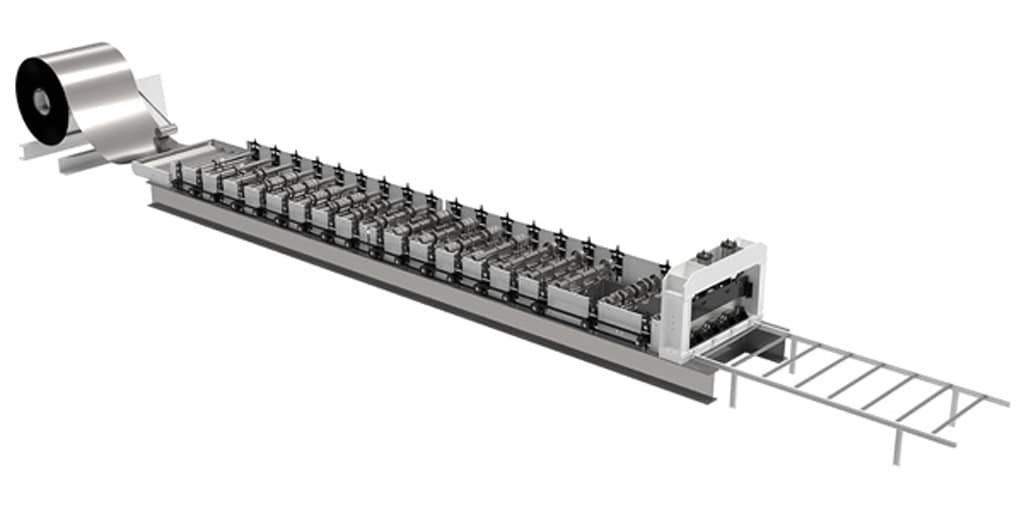

The RX-SL36 Single-Layer Roll Former can be configured for any of our available profiles selected for your operation and customized to your specific production needs. Built for dependable, efficient production, it provides a dedicated single-layer solution for the panel profile your business needs to run.

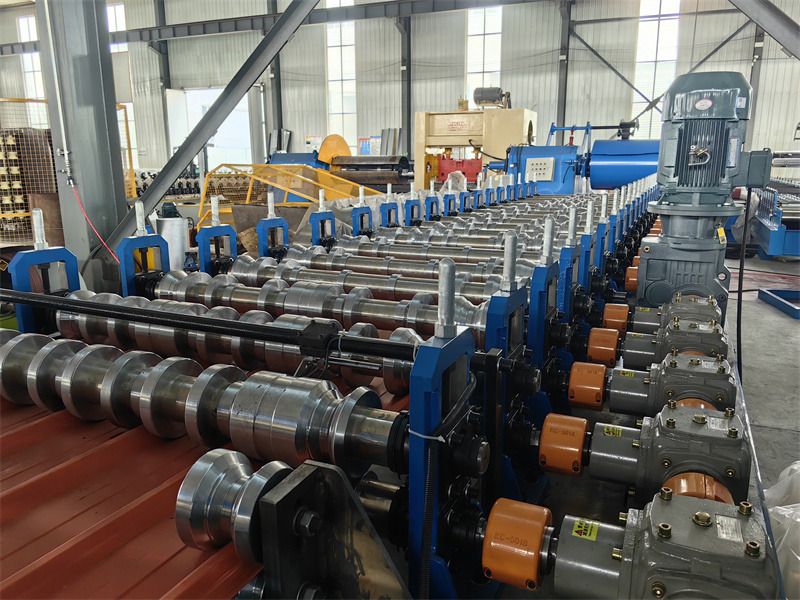

Depending on the selected profile, the Single-Layer Roll Former uses 18–22 forming stations. Using more stations allows the material to be formed more gradually through the machine, helping produce a better finished panel while reducing the potential for oil canning and edge wave.
The pre-shear can be used to cut the final piece before it enters the forming stations, helping reduce material waste at the end of a run. During normal production, panels are typically cut with the post-shear after they have been fully formed, helping ensure the finished panel maintains the correct shape.
The controller stores cut lists by length and quantity and reads out in inches and feet. Load a job of 40 panels at 14 ft 6 in, press start, and the machine runs it. E-stops and protective covers over the drive and shear are standard.

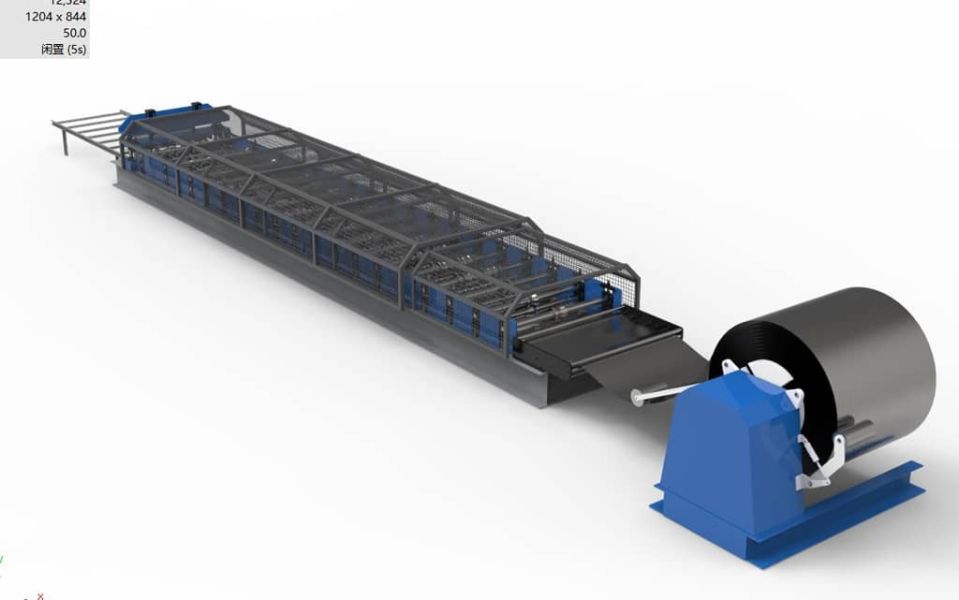

A 10,000 lb (5-ton) manual decoiler is included with the machine, providing a dependable solution for handling coils during production. A hydraulic decoiler with coil car is available as an optional upgrade.
| Model | RX-SL36 |

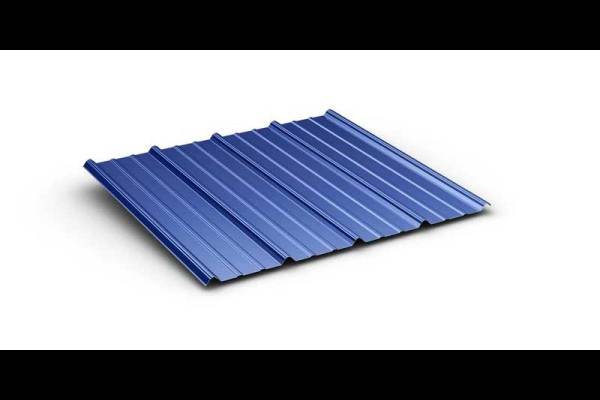

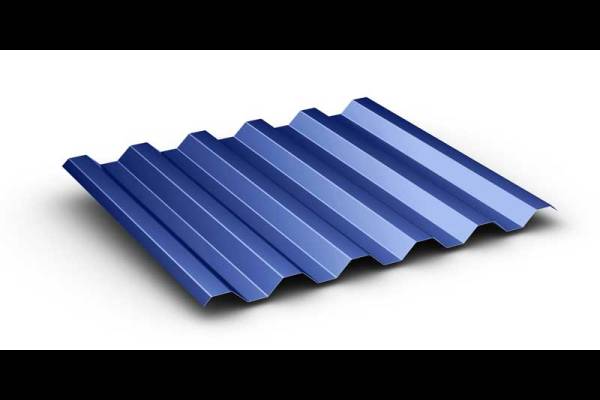

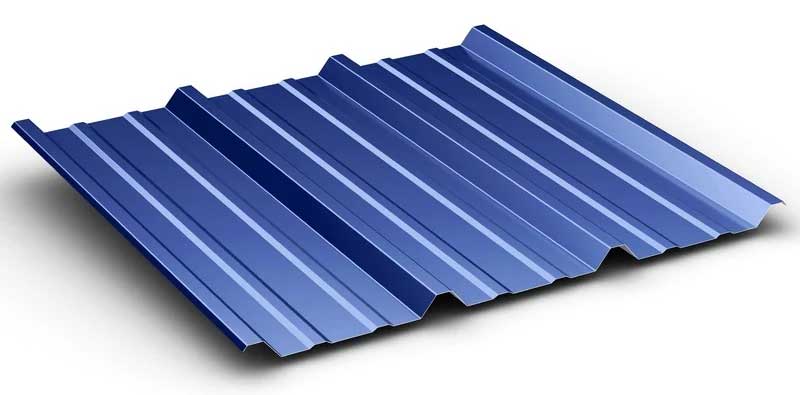

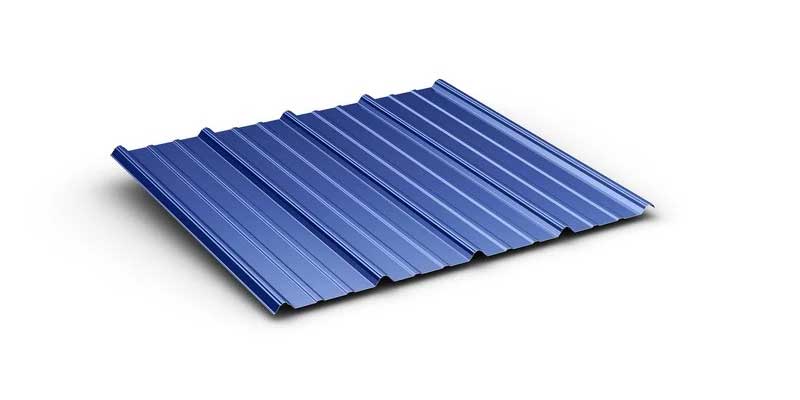

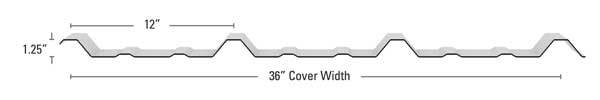

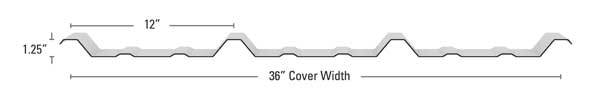

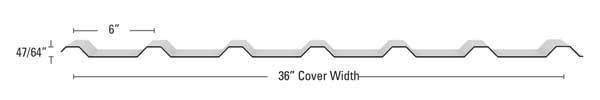

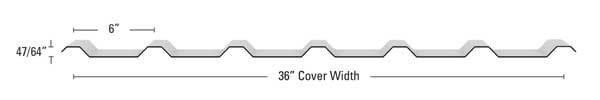

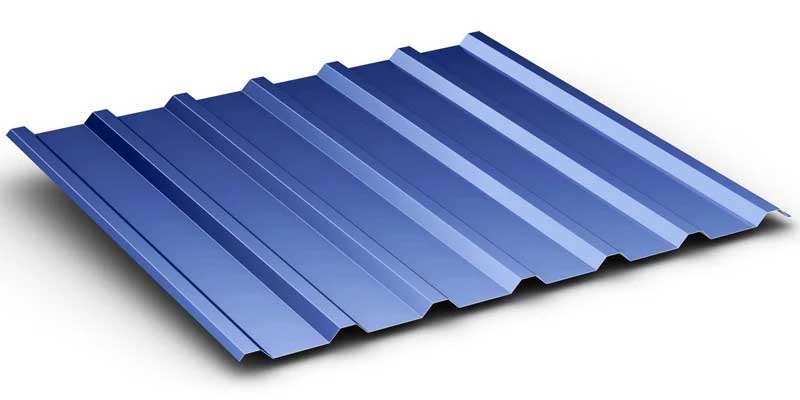

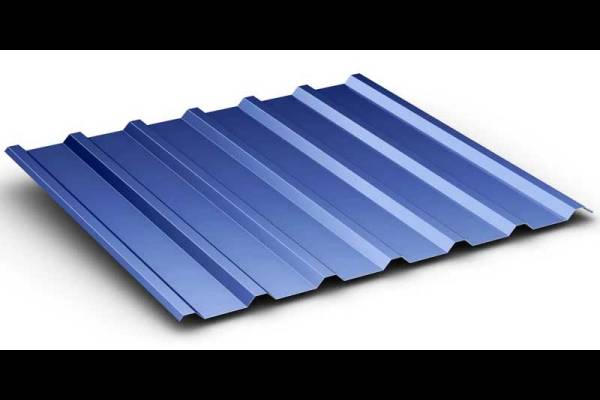

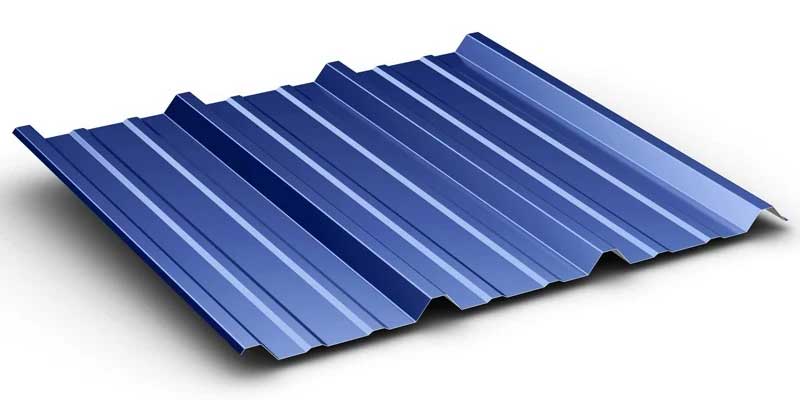

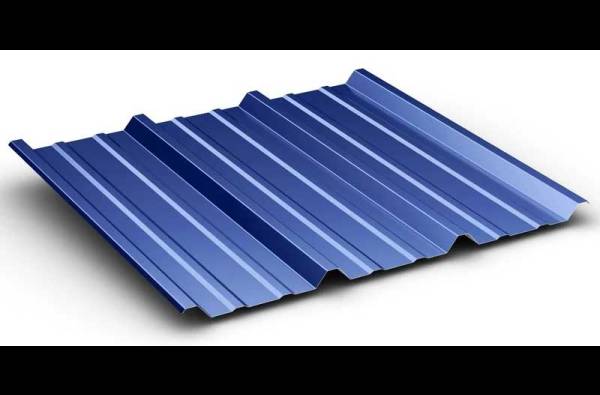

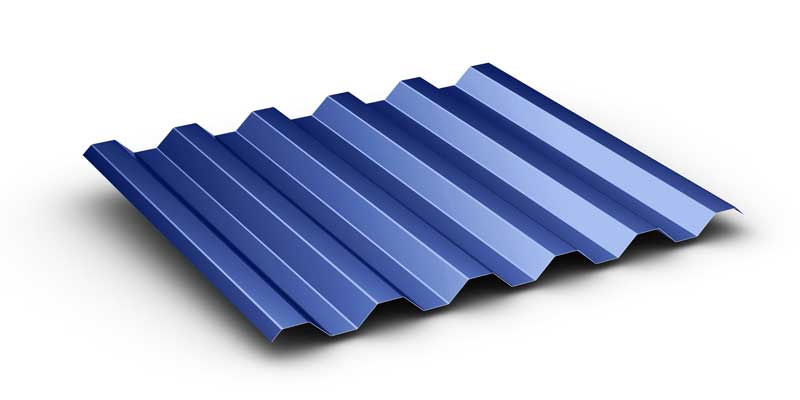

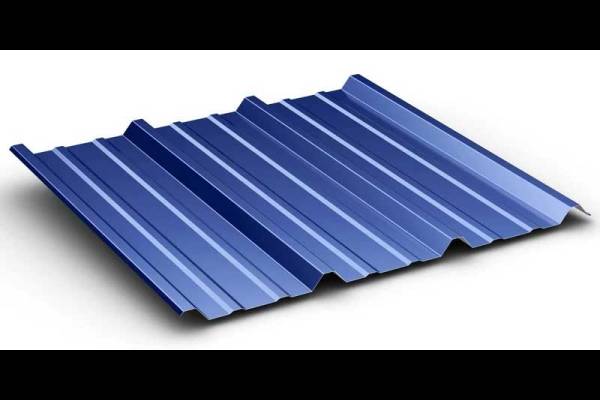

| Profile | PBR, R, AG, PBU, U, 7.2, 7.2N |

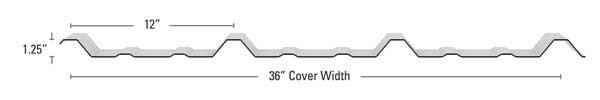

| Net Coverage | 36 in PBR, R, AG, PBU, U, 7.2 / 28.8 in = 7.2N |
| Coil Width | PBR, PBU, 7.2N = 43 in / R, U = 41.5625 in / AG = 40.875 in / 7.2 = 45.5 in |
| Material Thickness | 29–24 ga |
| Materials | Galvanized, Galvalume, painted steel, aluminum |
| Forming Stations | 18–22, depending on profile |
| Shaft Diameter | 2.95 in (75 mm) solid keyed shafts |
| Shaft Material | 45# (1045 equivalent) |
| Roller Material | 45# (1045 equivalent), 3 mm hard chrome plating |
| Frame | 350H welded steel |
| Drive | Chain drive, external gear synchronization |
| Line Speed | 0–65 FPM (0–20 m/min), variable |
| Main Motor | 10 HP (7.5 kW) |
| Hydraulic Unit | 7.5 HP (5.5 kW) |
| Shear | Hydraulic post-cut and hydraulic pre-cut with quenched CR12MOV (D2-equivalent) blades |
| Controls | Siemens or Delta PLC with touchscreen, batch / length / quantity, multi-language |
| Decoiler | 10,000 lb (5 ton) manual decoiler included |
| Electrical | 3-phase, 60 Hz; 480V or 240V |
| Machine Weight | Approx. 16,000 lb (8 t) |
| Footprint | 35.5 ft × 5.5 ft × 4 ft (10.8 m × 1.8 m × 1.3 m) |
| Warranty | 18 months |
