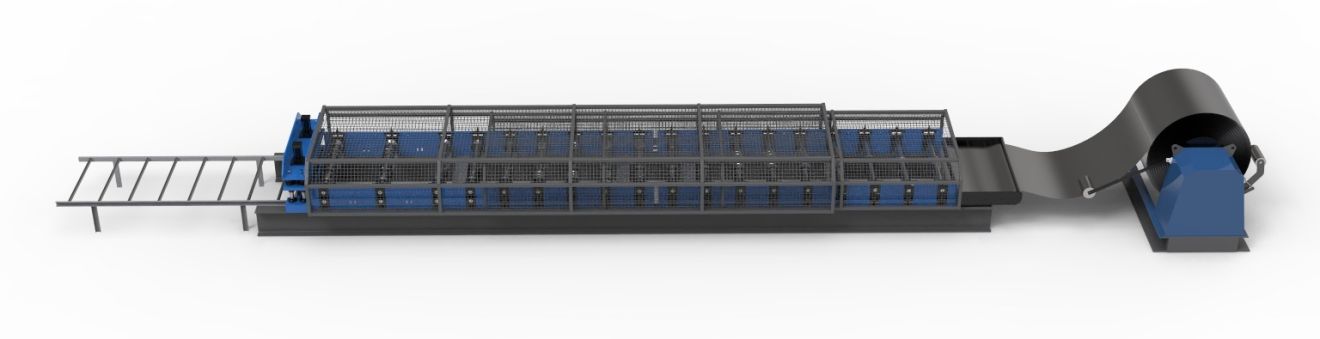

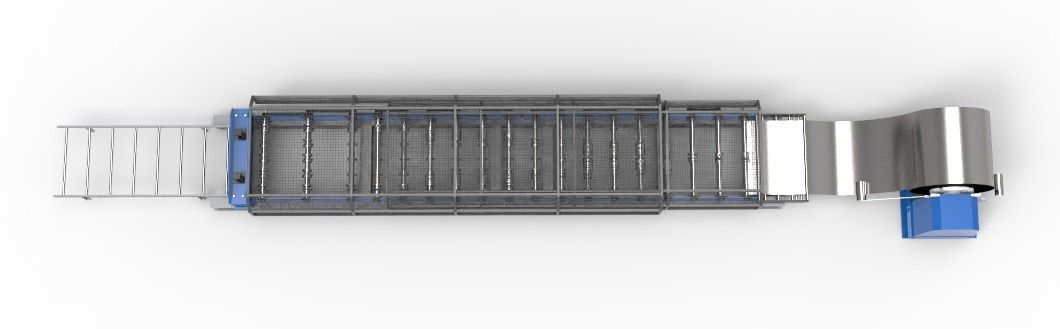

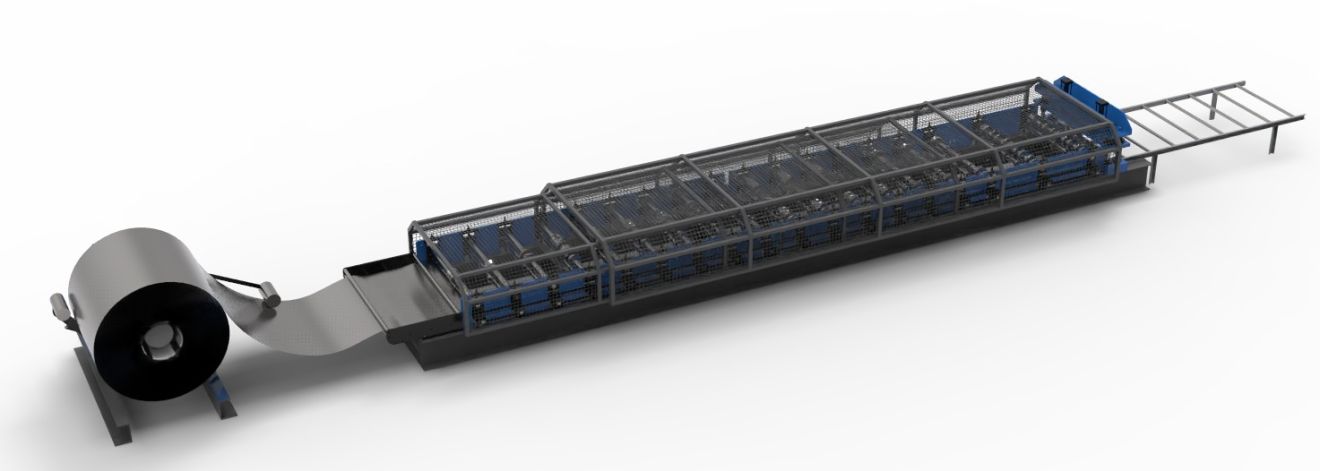

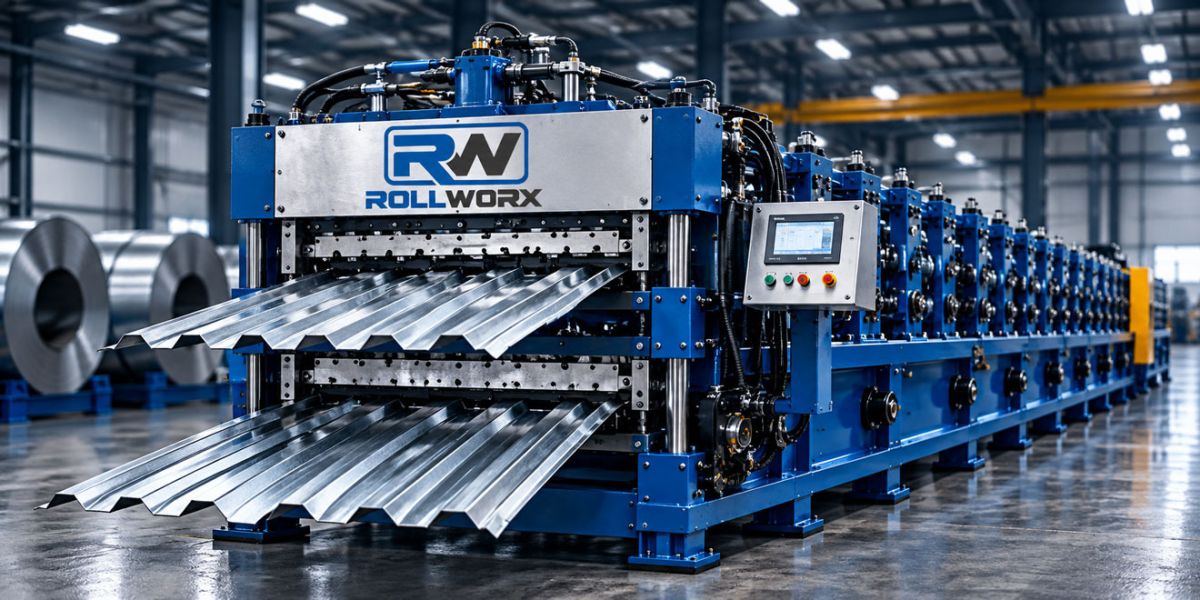

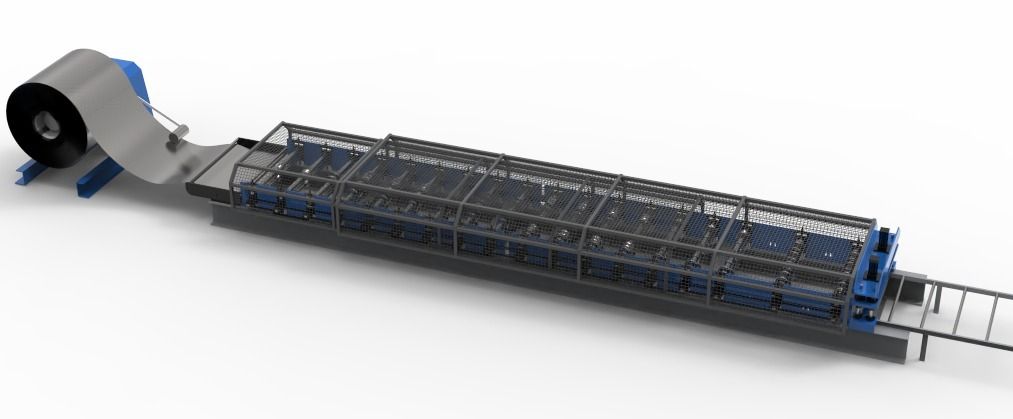

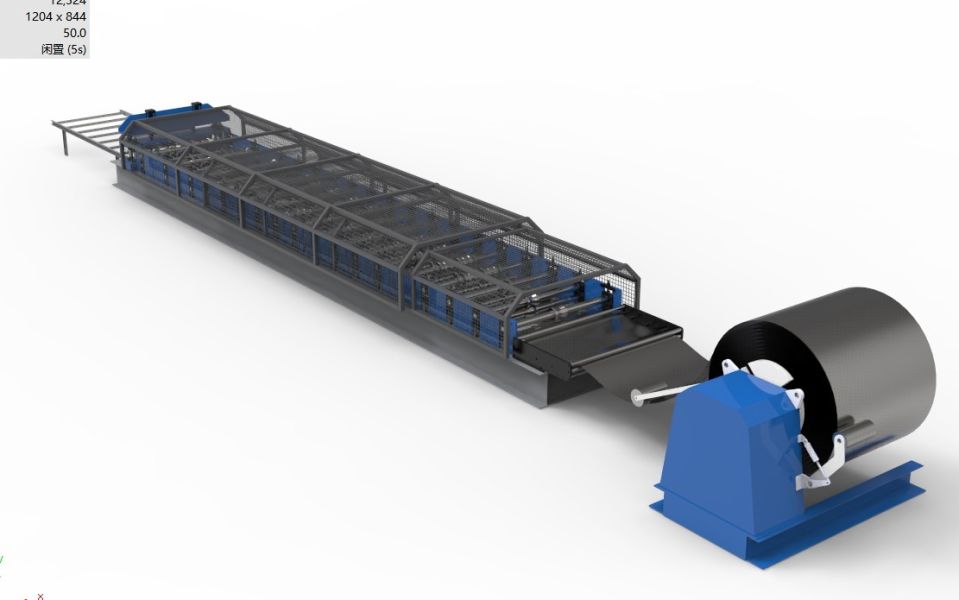

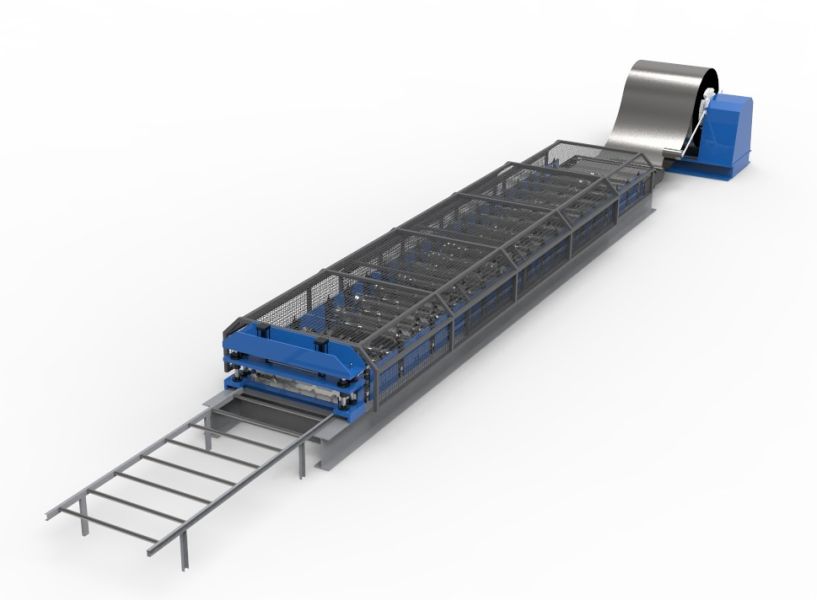

Choose two of our available profiles on a single footprint. The RX-DL36 stacks two forming decks in one heavy 350H welded frame, allowing your shop to run two different profiles from one machine and switch between them without the need for two separate machines.
The upper and lower decks are configured to form the two panel profiles you choose for your operation. A clutch interlock means only one deck can drive at a time, which protects the drive train and keeps a single operator from ever running coil into both decks. Changeover is a matter of moving the coil, not the tooling.
Forming rollers are machined from 1045-equivalent steel and hard-chrome plated to 3 mm. That plating is what keeps painted Galvalume from scuffing at the rib and what keeps the roll profile true after a few hundred thousand feet. Rollers ride on solid keyed shafts in a 350H welded steel frame, the same class of frame you see on domestic machines at twice the price.
The PLC and touchscreen let you load a cut list, set quantity and length per line, and walk away. Read-outs are in inches and feet, and the interface supports multiple languages for a mixed crew. Manual jog and E-stops are at the operator station and at the exit.
A hydraulic post-shear and pre-shear with quenched CR12MOV blades provide clean, accurate cuts. The pre-shear allows the final piece to be cut before entering the machine, helping reduce material waste, while the post-shear cuts the finished panel after it has been fully formed. Rubber-faced infeed rollers with adjustable side guides and protective strips help protect the painted surface from coil to run-out table.
| Model | RX-DL36 |
|---|---|

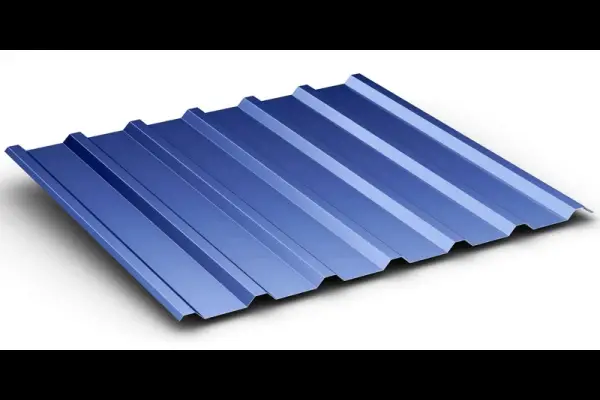

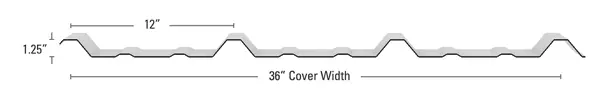

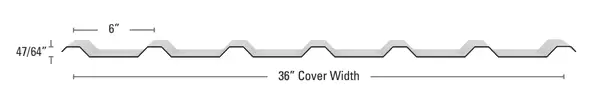

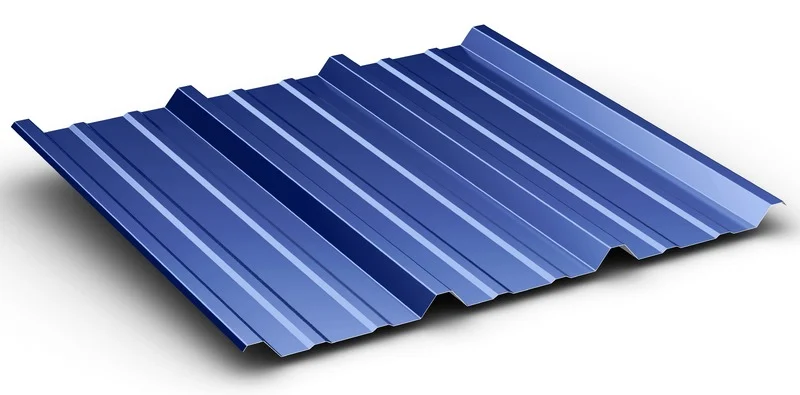

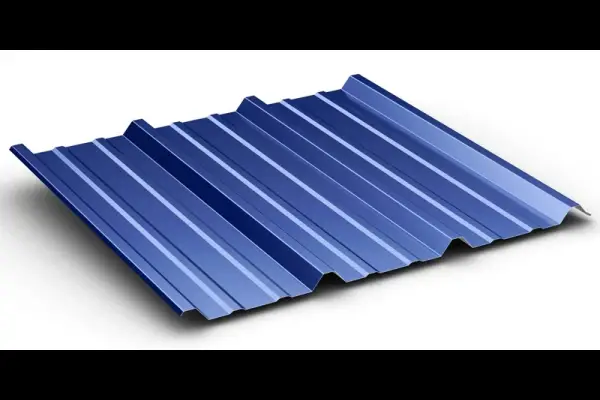

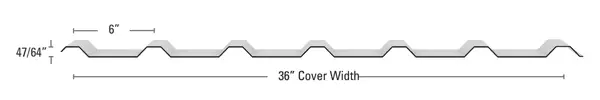

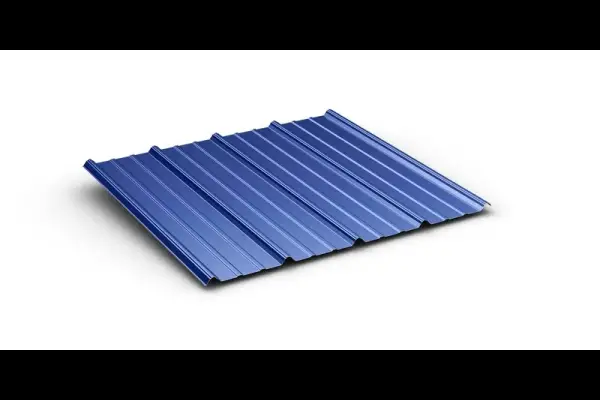

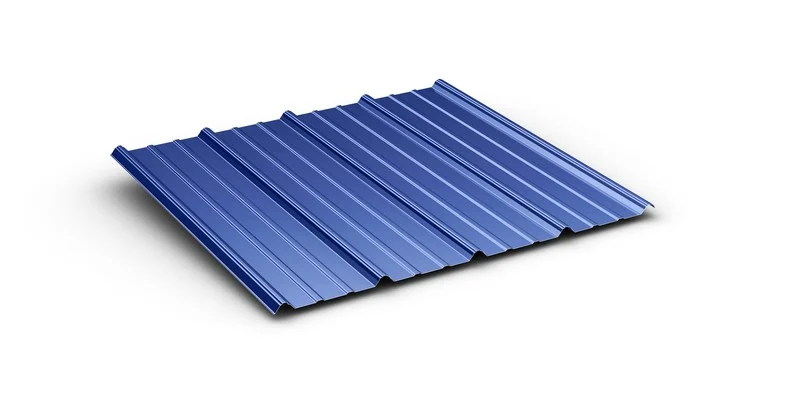

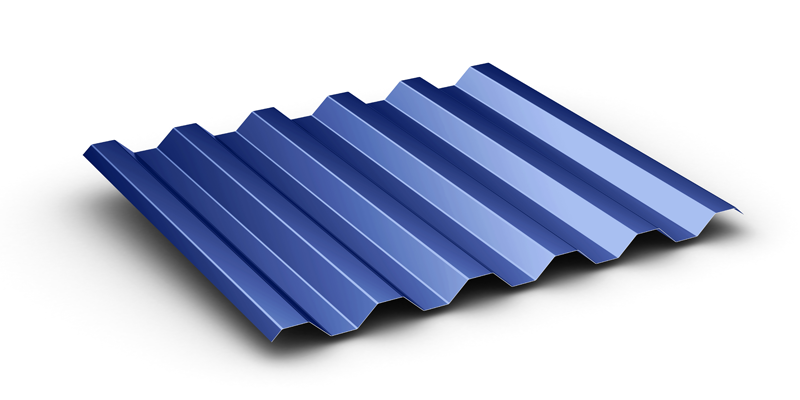

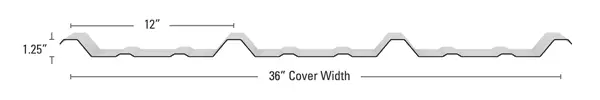

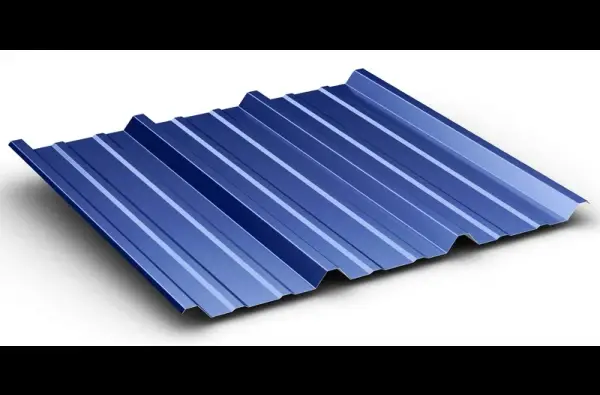

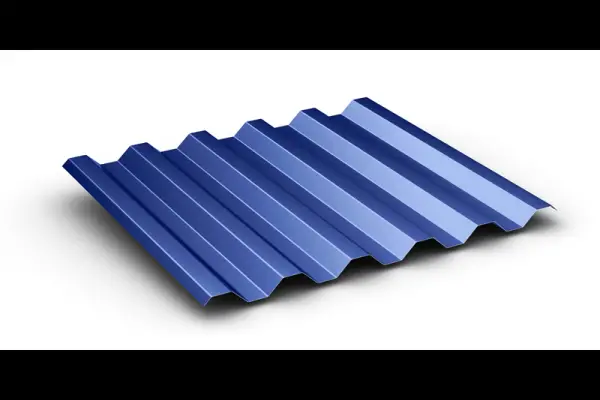

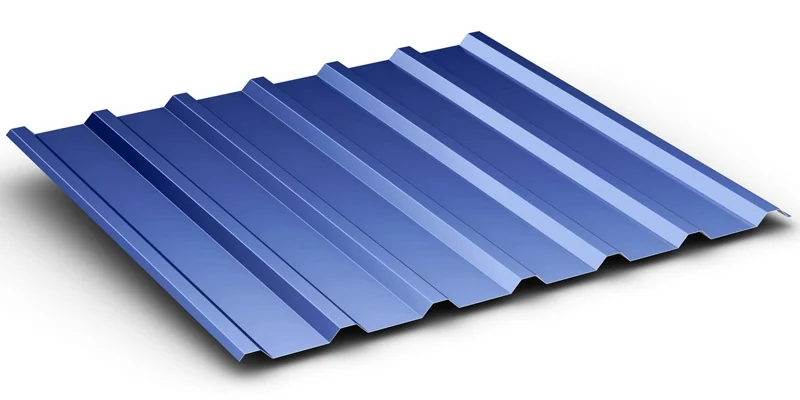

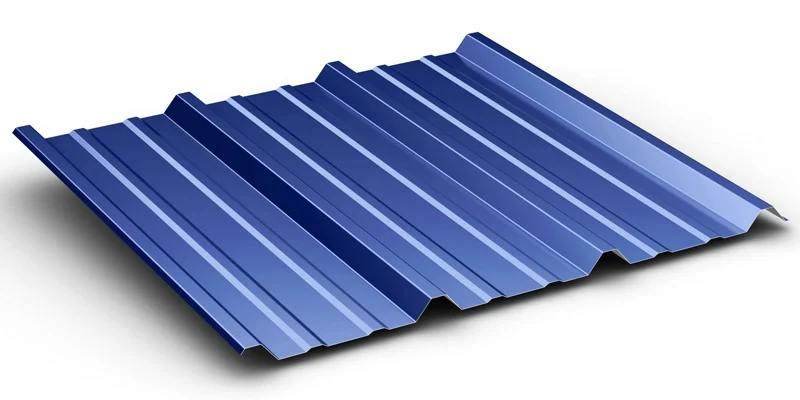

| Profiles | PBR, R, AG, PBU, U, 7.2, 7.2N |

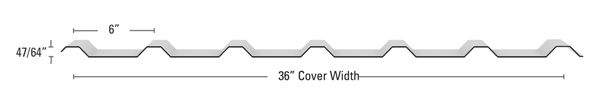

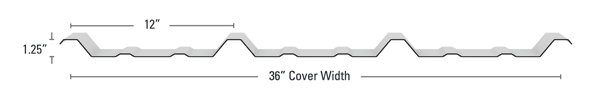

| Net Coverage | 36 in PBR, R, AG, PBU, U, 7.2 / 28.8 in = 7.2N |
| Coil Width | PBR, PBU, 7.2N = 43 in / R, U = 41.5625 in / AG = 40.875 in / 7.2 = 45.5 in |
| Material Thickness | 29–24 ga |
| Materials | Galvanized, Galvalume, painted steel, aluminum |
| Forming Stations | 18–22, depending on profile |
| Shaft Diameter | 2.95 in (75 mm) solid keyed shafts |
| Shaft Material | 45# (1045 equivalent) |
| Roller Material | 45# (1045 equivalent), 3 mm hard chrome plating |
| Frame | 350H welded steel |
| Drive | Chain drive, external gear synchronization |
| Line Speed | 0–65 FPM (0–20 m/min), variable |
| Main Motor | 10 HP (7.5 kW) |
| Hydraulic Unit | 7.5 HP (5.5 kW) |
| Shear | Hydraulic post-cut and hydraulic pre-cut with quenched CR12MOV (D2-equivalent) blades |
| Controls | Siemens or Delta PLC with touchscreen, batch / length / quantity, multi-language |
| Decoiler | 10,000 lb (5 ton) manual decoiler included |
| Electrical | 3-phase, 60 Hz; 480V or 240V |
| Machine Weight | Approx. 22,000 lb (10 t) |
| Footprint | 35.5 ft × 5.5 ft × 5 ft (10.8 m × 1.8 m × 1.6 m) |
| Warranty | 18 Months |
