Buy master coil, run your own trim coil and flat blanks. The RX-SCL48 decoils, levels, slits, and shears to length in one pass, so the shop that already runs panels stops paying a service center to slit 41-inch roofing coil and stops waiting for it.

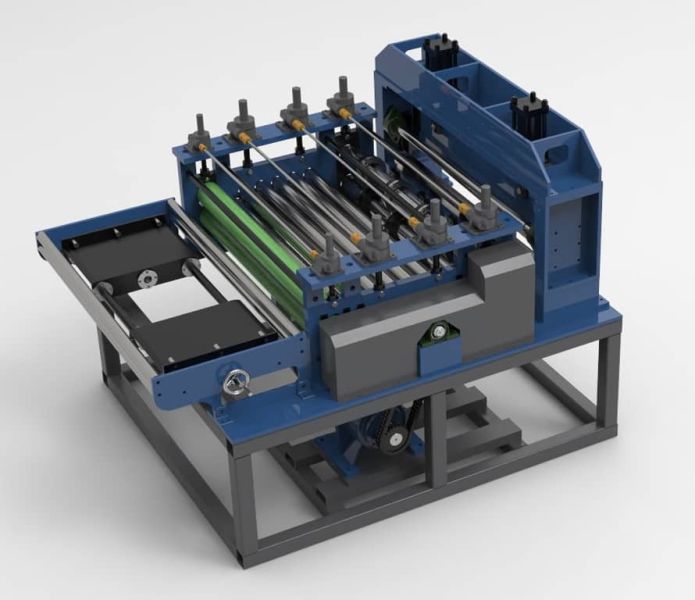

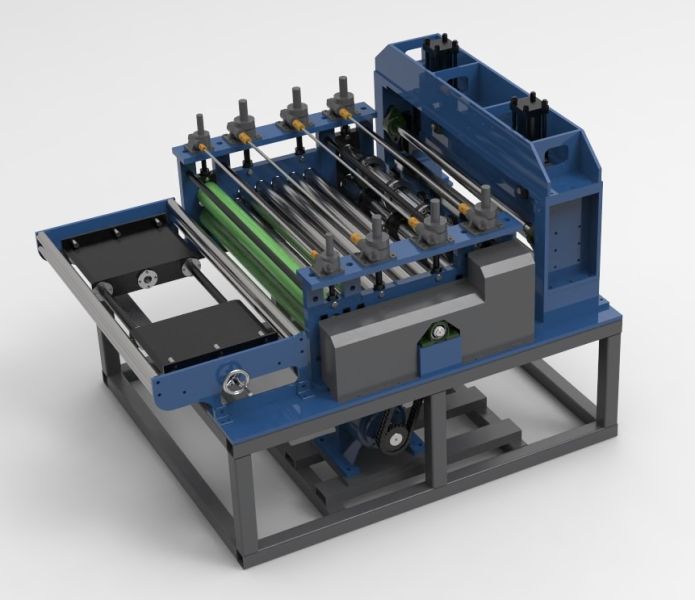

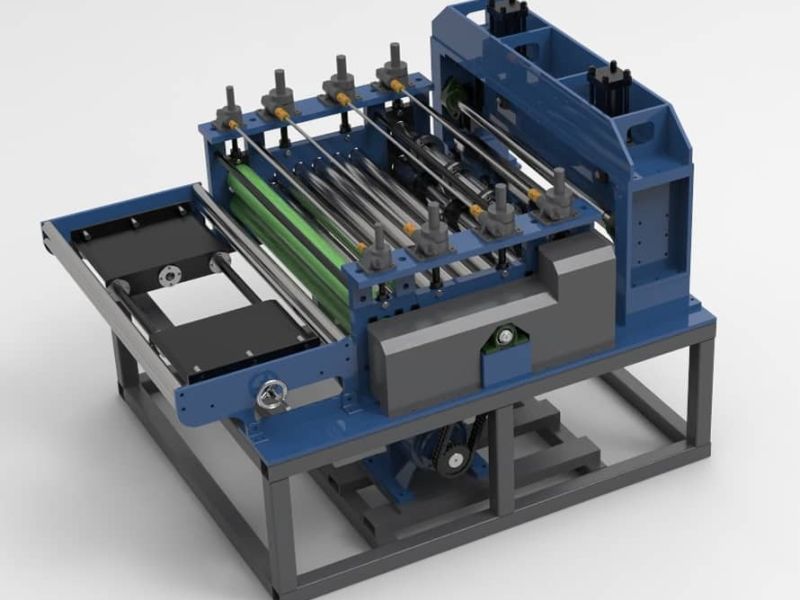

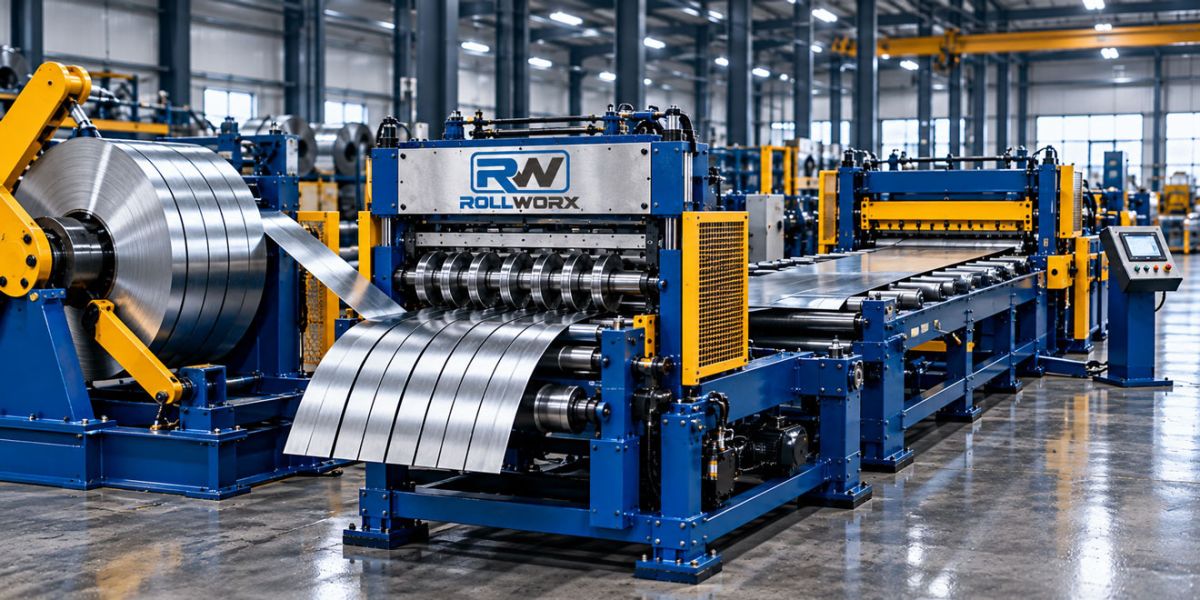

Coil feeds into the line through the decoiler. A 11-roll, 5-high leveler takes the coil set out of the strip so blanks lay flat. Four sets of slitter blades split the strip into the widths you need, and a hydraulic flying shear cuts to length on the move without stopping the line. Finished pieces run out on a conveyor to the stacking area.

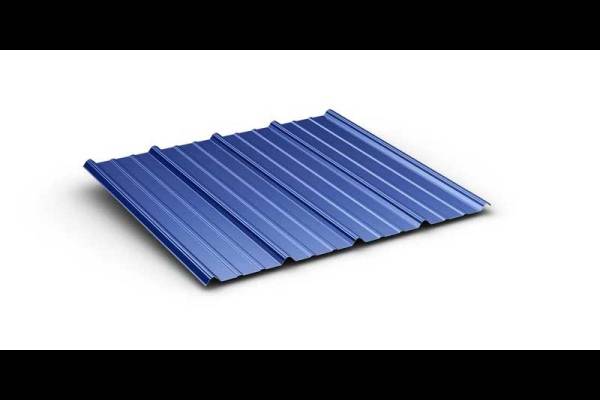

Most panel shops buy pre-slit 41-inch or 43-inch coil at a premium and wait on the service center. With master coil and this line you slit panel coil, trim coil, and gutter coil from the same buy, in the widths you decide.
Set the shear length and the line produces flat sheet for trim, flashing, cabinet panels, and HVAC blanks. Length accuracy is held by encoder and PLC, and the leveler is what keeps the blank from springing on the brake.
Delta PLC, touchscreen, and inverter, an Omron encoder, and Schneider electrical components. Every part is stocked in the US, which is a detail worth asking about on any imported line.
| Model | RX-SCL48 |
| Max coil width | 48 in (1250 mm) |
| Material thickness | 21–30 ga |
| Materials | Galvanized, Galvalume, painted steel, cold-rolled, stainless, aluminum |
| Shaft Diameter | 2.76 in (70 mm) solid keyed shafts |
| Shaft Material | 45# (1045 equivalent) |
| Leveler | 11 rolls, 5 up, 6 down, motorized |
| Features | Auto counting, remote operation, fault diagnosis |
| Line speed | 0–50 FPM (0–15 m/min) |
| Main Motor | 7.5 HP (5.5 kW) |
| Hydraulic unit | 5.5 HP (4 kW) |
| Slitter | 4 blade sets, 2.75 in (70 mm) arbor |
| Shear | Hydraulic post-cut and hydraulic pre-cut with quenched CR12MOV (D2-equivalent) blades |
| Controls | Delta PLC with touchscreen, Omron encoder, Schneider electrical components |
| Decoiler | 10,000 lb (5 ton) manual decoiler included |
| Electrical | 3-phase, 60 Hz; 480V or 240V |
| Machine Weight | Approx. TBD |
| Footpring Approx | 16.5 ft × 5.5 ft × 5 ft (5 m × 1.7 m × 1.5 m) |
| Warranty | 18 Months |
